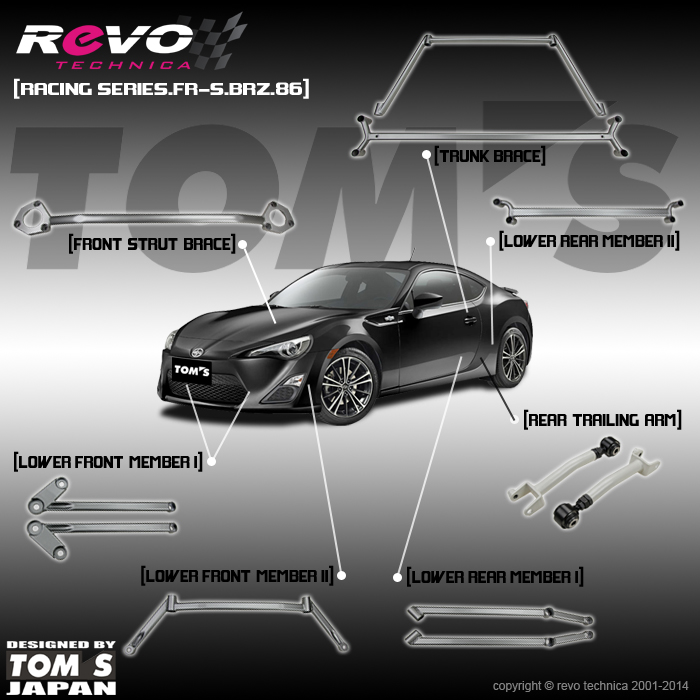

Revo Technica Racing Series Braces - Scion FR-S - Subaru BRZ - Toyota FT86/GT86




Revo Technica Racing Series braces for the Scion FR-S, Subaru BRZ, and Toyota FT86/GT86 are designed by Tom's racing team in Japan with extensive R&D and road tests to ensure correctness & precision. These braces strengthen the chassis and minimize body flex during hard corning while optimizing suspension movement for improved handling.  They are fabricated from lightweight high tension reinforced steel (many other manufactures have used aluminum materials in their build which is not able to provide same stability and rigidity as steel) They are powder coated with a silver metallic finish to withstand the harshest of environments.  Each brace is 100% bolt-on to accommodate any vehicle configuration whether factory, mildly tuned or greatly modified.

All Revo Technica Racing Series Braces and Control Arms for the FR-S/BRZ/86 come with a Limited Lifetime Warranty against defects in material and workmanship.

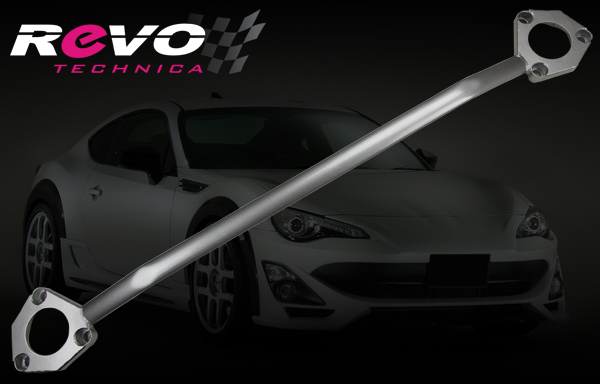

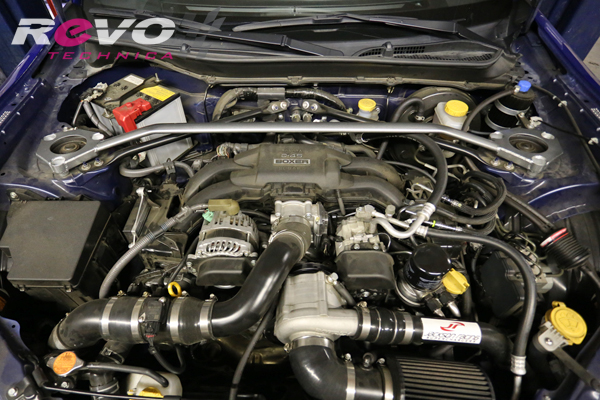

Upper Front Strut Tower Brace [Item# RT10-1076]

Position: Engine bay front strut tower

Item Weight: 5.7 lbs (2.6 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $168

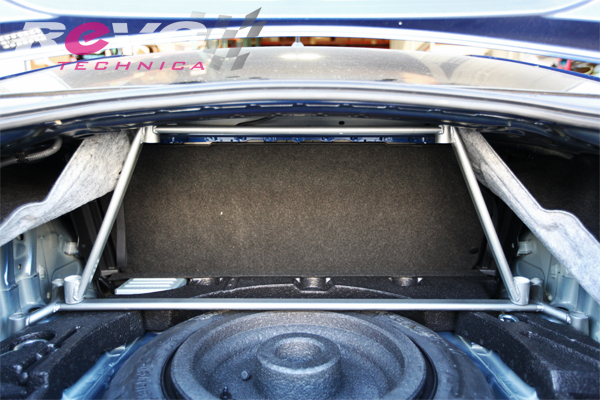

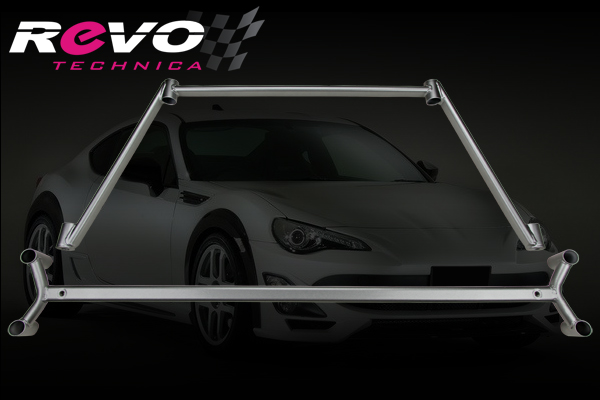

Upper Rear Trunk Brace [Item# RT10-1077]

Position: Rear trunk 6 point mounting

Item Weight: 6.6 lbs (3 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $176

Note: Rear trunk cover/mat removal/trimming required

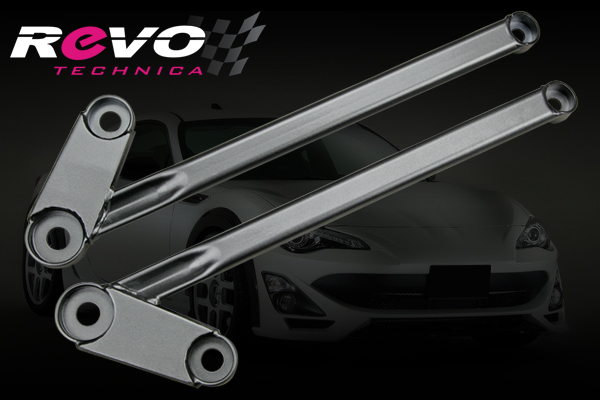

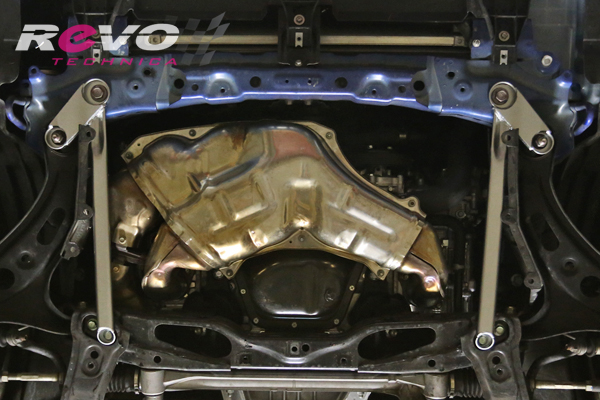

Lower Front Member Brace I [Item# RT20-1086]

Position: Lower front member 3 point mounting (L + R)

Item Weight: 3.6 lbs (1.6 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $122

Note: Does not interfere with factory skid plate

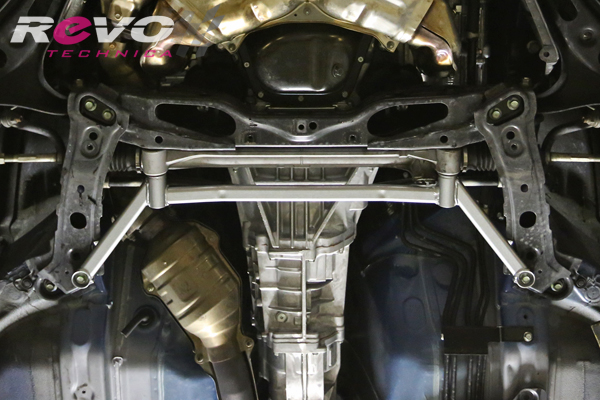

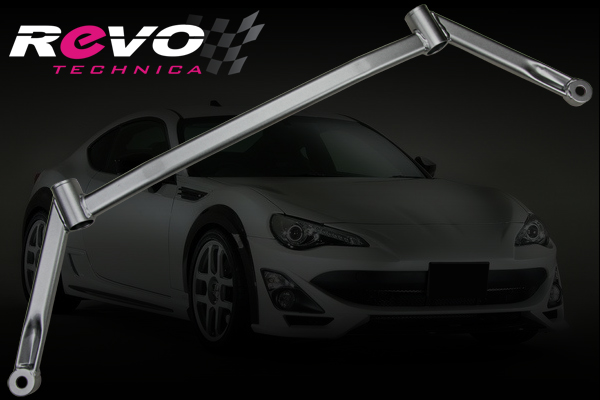

Lower Front Member Brace II [Item# RT20-1087]

Position: Lower mid front member 4 point mounting

Item Weight: 2.9 lbs (1.3 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $118

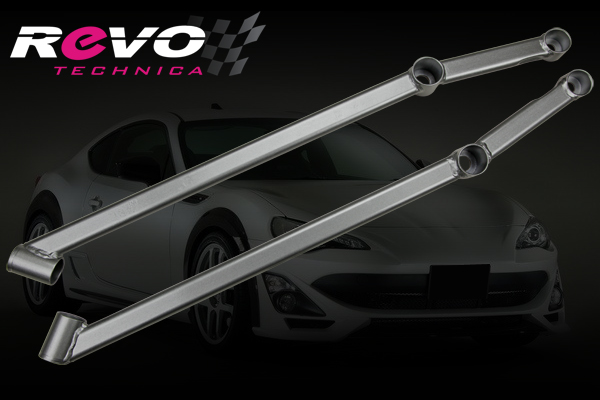

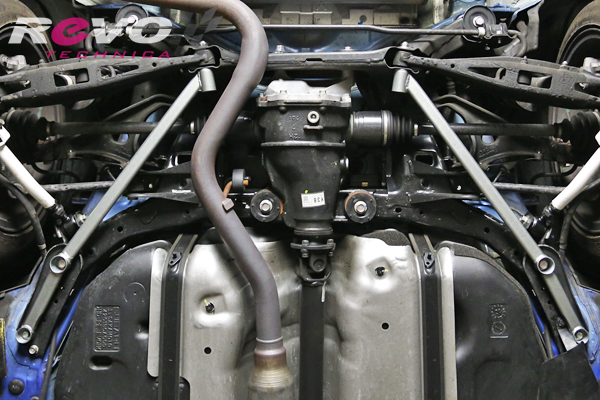

Lower Rear Member Brace I [Item# RT20-1088]

Position: Lower mid rear member 3 point mounting (L + R)

Item Weight: 3.7 lbs (1.7 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $145

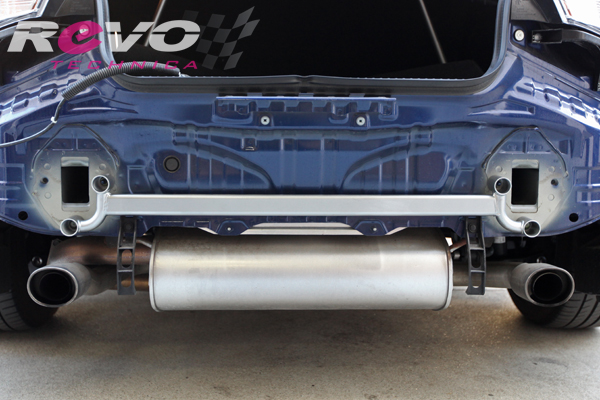

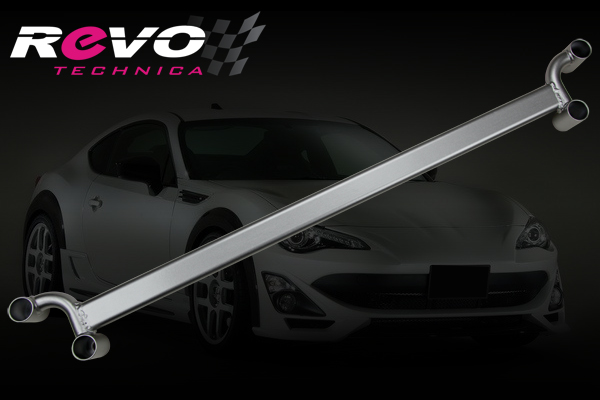

Lower Rear Member Brace II [Item# RT20-1089]

Position: Lower rear member/crash beam 4 point mounting

Item Weight: 3 lbs (1.4 kg)

Material: Lightweight hollow reinforced steel powder coated silver metallic

MSRP: $145

Note: Installs in place of factory crash beam

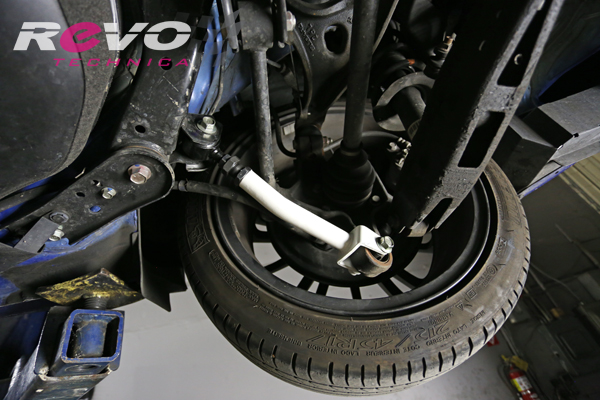

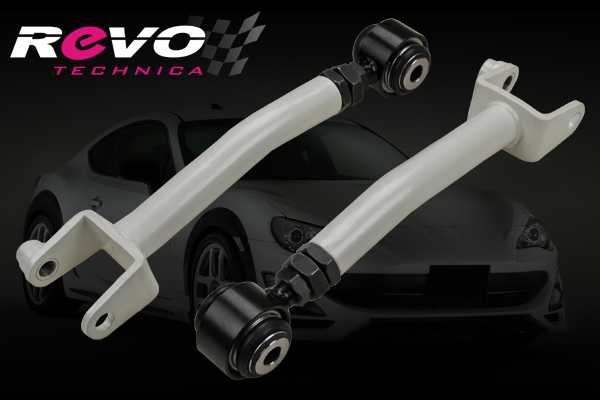

Lower Rear Trailing Caster Arms [Item# RT30-1091]

Position: Lower rear trailing arms (adjustable caster +/- 12mm) (L + R)

Item Weight: 5.5 lbs (2.5 kg)

Material: Lightweight hollow tubular steel powder coated white - w/pillow ball bushings

MSRP: $124
